Mid-Heavy Steel Sheet Piling
Shoreline Steel offers these mid-heavy steel materials available in ASTM-A-572 / GR.50 / ASTM-A-328 / Bare or Galvanized finish. All of the listed mid-heavy sheet pilings are fully manufactured in the USA. All the mid-heavy sheet piling can be cut to the length you need it. The mid-heavy sheet piling can be used to prevent erosion to protect shores.

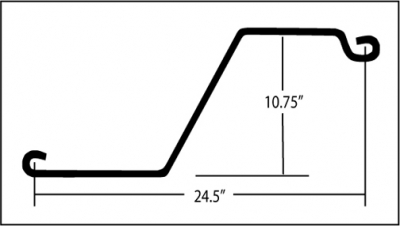

Mid-Heavy Sheeting Cross Section
| Section Type | Thickness | Weight | Weight | Sec. Mod. | Moment of Inertia | Coating Area | |
|---|---|---|---|---|---|---|---|
| Nominal | Lb/Square Ft. | Lb/Lineal Ft. | Inch3(Ft.Wall) | Inch4(Ft.Wall) | Sq.Ft/LF | ||
| Per Pile | Per Ft. of Wall | ||||||
| SZ - 250 | .250 | 15.9 | 32.4 | 16.6 | 182.2 | 89.42 | 5.75 |
| SZ - 313 | .312 | 19.9 | 40.4 | 20.6 | 227.3 | 111.53 | 5.75 |
| SZ - 340 | .340 | 21.5 | 44.1 | 22.4 | 247.5 | 121.45 | 5.75 |
| SZ - 350 | .350 | 22.1 | 45.3 | 22.9 | 254.0 | 124.62 | 5.75 |
| SZ - 375 | .375 | 23.5 | 48.6 | 24.5 | 272.2 | 133.55 | 5.75 |

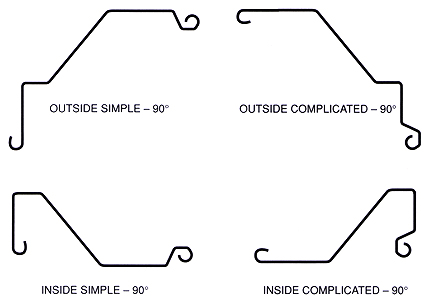

Bent Corners
- Corners Maybe Bent To Any Degree Up To 90 Degrees
- Outside Corners Available in all Zee Piling Sections
- Inside Corners Available in Light Zee, Intermediate Light Zee and Intermediate Heavy Zee
- Custom Capping, Tie Backs, Waling, Fabricated Corners, Tees and Slip Joints Are Available
