Mega Zee 11 Steel Sheet Piling

All the sheet piling can be cut to the length you need it. The sheet piling can be used to prevent erosion to protect shores.

Mega Zee-11 Steel Sheet Piling

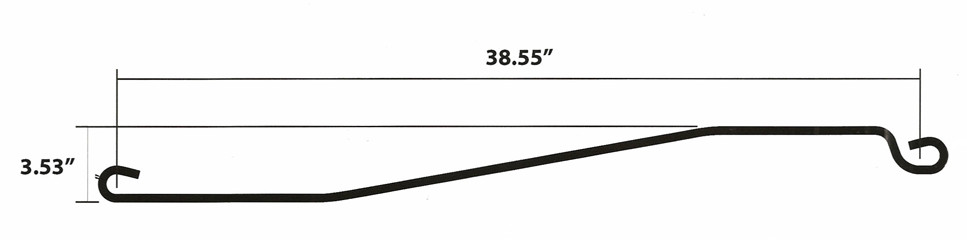

Mega Zee-11 Series Sheeting Cross Section

Shoreline Section	Thickness	Weight	Weight	Sec. Mod.	Moment of Inertia	Coating Area
	In.	Lb/Lineal Ft.	Lb/Square Ft.	Inch³(Ft.Wall)	Inch⁴(Ft.Wall)	Sq.Ft/LF
	In.	Lb/Lineal Ft.	Lb/Square Ft.	Inch³(Ft.Wall)	Per Ft. of Wall	Sq.Ft/LF
MSZ11 - 312	.312	49.72	15.48	3.76	6.83	7.51
MSZ11 - 340	.340	54.10	16.84	4.06	7.43	7.52
MSZ11 - 350	.350	55.69	17.34	4.17	7.65	7.53
MSZ11 - 375	.375	59.67	18.58	4.44	8.21	7.54
MSZ11 - 406	.406	64.60	20.11	4.79	8.92	7.54

Bent Corners

Line diagram of Outside Simple, Outside Complicated 90 deg angles

Outside Corners Only On Heavyweight Sheet Piling
Corners Maybe Bent To Any Degree Up To 90 Degrees
Custom Capping, Tie Backs, Waling, Fabricated Corners, Tees and Slip Joints Are Available
