Zee Lightweight Sheet Pile

Shoreline Steel offers these Zee lightweight steel materials available in ASTM-A-572 / GR.50 / ASTM-A-328 / Bare or Galvanized finish. All of the listed Zee lightweight sheet pilings are fully manufactured in the USA. All the Zee lightweight sheet piling can be cut to the length you need it. The Zee lightweight sheet piling can be used to prevent erosion to protect shores.

Zee Lightweight Steel Sheet Piling

Zee Lightweight Sheeting Cross Section

Section Type Thickness Weight Weight Sec. Mod. Moment of Inertia Coating Area
Nominal Lb/Square Ft. Lb/Lineal Ft. Inch3(Ft.Wall) Inch4(Ft.Wall) Sq.Ft/LF
Per Pile Per Ft. of Wall
LZ - 8 .164 8.3 16.6 3.6 16.8 8.1 4.75
LZ - 7 .179 9.1 18.2 3.9 18.4 8.9 4.75
LZ - 5 .209 10.6 21.2 4.6 21.5 10.4 4.75
LZ - 250 .250 12.8 25.6 5.4 25.7 12.4 4.75

Bent Corners - Any angle up to 90 degrees

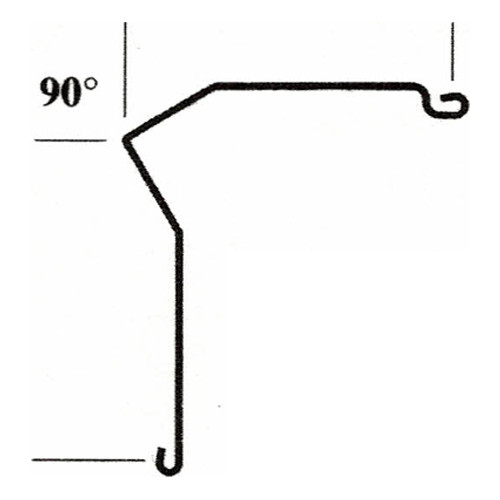

Line diagram of 'G' Type bent corner angles

Available from stock

  • Capping Angle
  • Waling Channel
  • Tie Back Rods

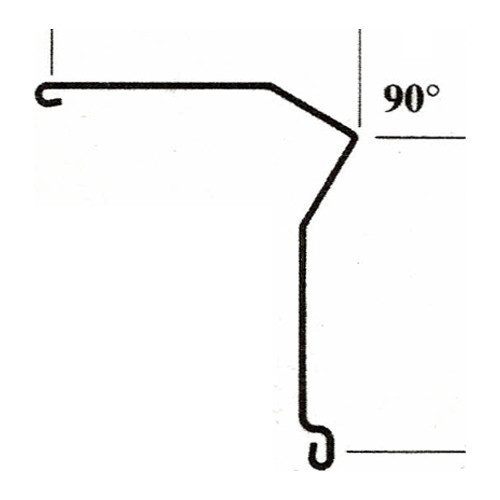

Line diagram of 'H' Type bent corner angles

Available from stock

  • Custom Capping
  • Waling Channel
  • Tie Back Rods

Line diagram of Outside Simple, Outside Complicated, Inside Simple, Inside Complicated 90 deg angles

  • Corners May be bent to Any Degree Up To 90 Degrees
  • Outside Corners Available in all Zee Piling Sections
  • Inside Corners Available in Light Zee, Intermediate Light Zee and Intermediate Heavy Zee
  • Custom Capping, Tie Backs, Waling, Fabricated Corners, Tees and Slip Joints Are Available
